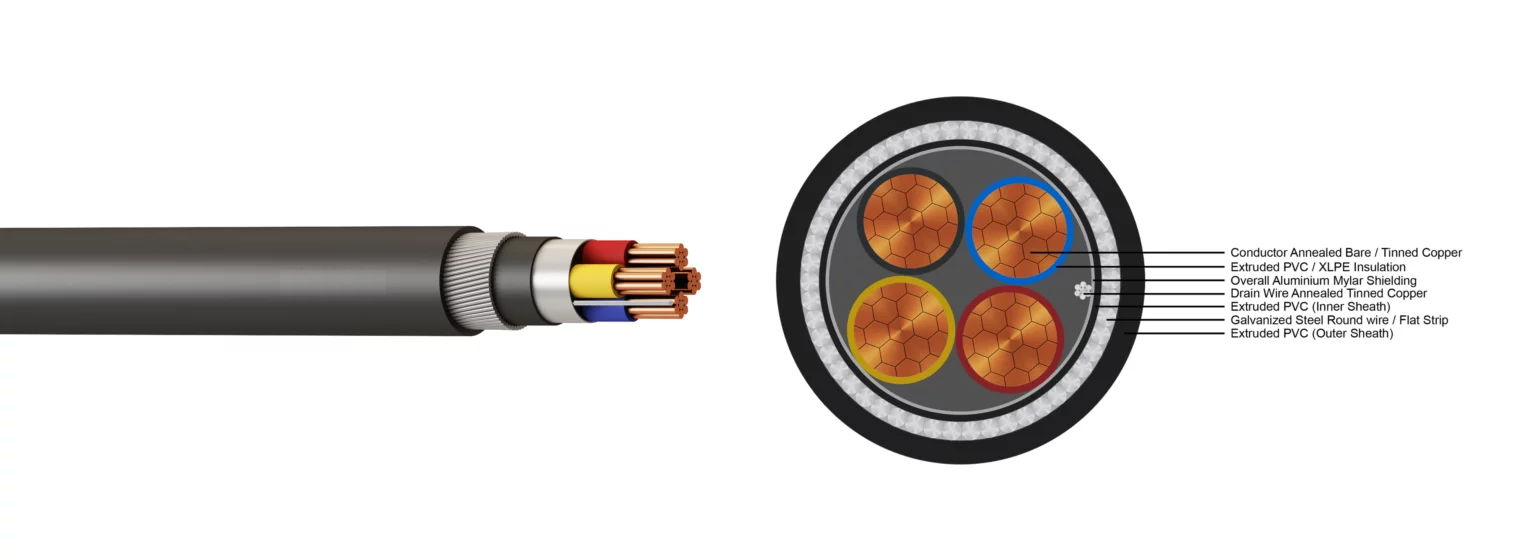

“Shera Cables” make Armoured/Unarmoured Screened/Unscreened cable generally as per BS EN 50288-7/ BS:5308/ IS:1554 (Part-1)/IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, cores laid up, overall aluminium mylar tape Screened/Unscreened with ATC drain wire, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm) |
VOLTAGE 300V / 500V / 1.1KV |
ARMORED YSWY / YSFY |
OUTER SHEATH PVC / LSZH |
CORE |
0.5 |
2C - 37C |
|||
0.75 |
2C - 37C |
|||
1 |
2C - 37C |
|||
1.5 |
2C - 37C |
|||
2.5 |
2C - 37C |

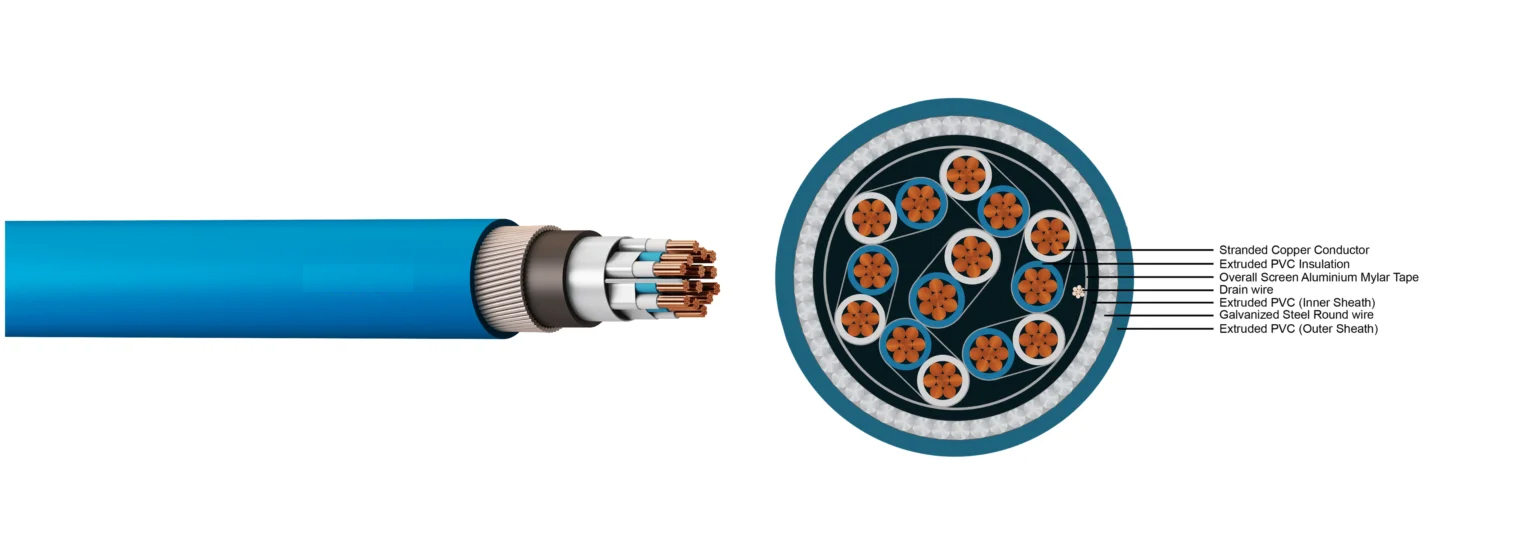

“Shera Cables” make Armoured/Unarmoured overall Screened/Unscreened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, overall aluminium mylar tape Screened/Unscreened with ATC drain wire, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm) |
VOLTAGE 300V / 500V / 1.1KV |
ARMORED YSWY / YSFY |
OUTER SHEATH PVC / LSZH |
PAIR |
0.5 |
1P - 37P |
|||
0.75 |
1P - 37P |
|||
1 |
1P - 37P |
|||
1.5 |
1P - 37P |
|||
2.5 |
1P - 37P |

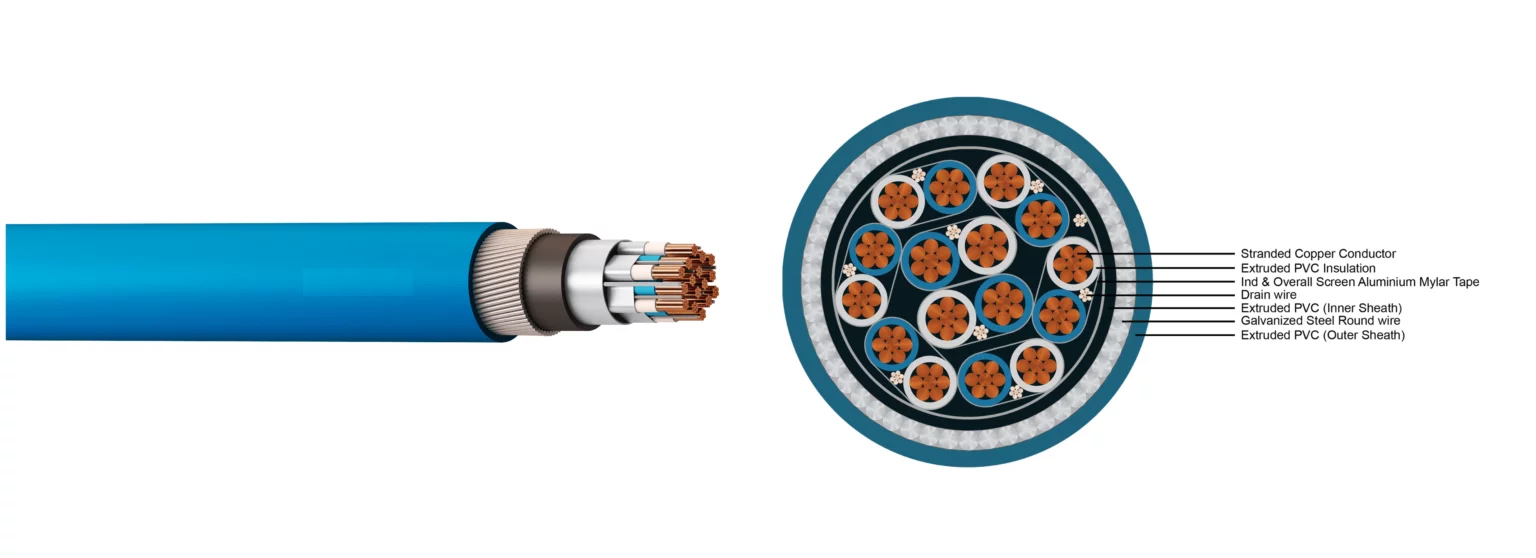

“Shera Cables” make Armoured/Unarmoured individual & overall Screened/Unscreened pair cable generally as per BS EN 50288-7/ BS:5308/ IS 1554 (Part-1)/ IS 7098 (Part-1), copper conductor, PVC/ XLPE insulated, pairs laid up, individual & overall aluminium mylar tape Screened/Unscreened with ATC drain wires, PVC inner sheathed, galvanised steel round/ flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm) |
VOLTAGE 300V / 500V / 1.1KV |
ARMORED YSWY / YSFY |
OUTER SHEATH PVC / LSZH |
PAIR |
0.5 |
2P - 37P |
|||
0.75 |
2P - 37P |
|||
1 |
2P - 37P |
|||
1.5 |
2P - 37P |
|||
2.5 |
2P - 37P |

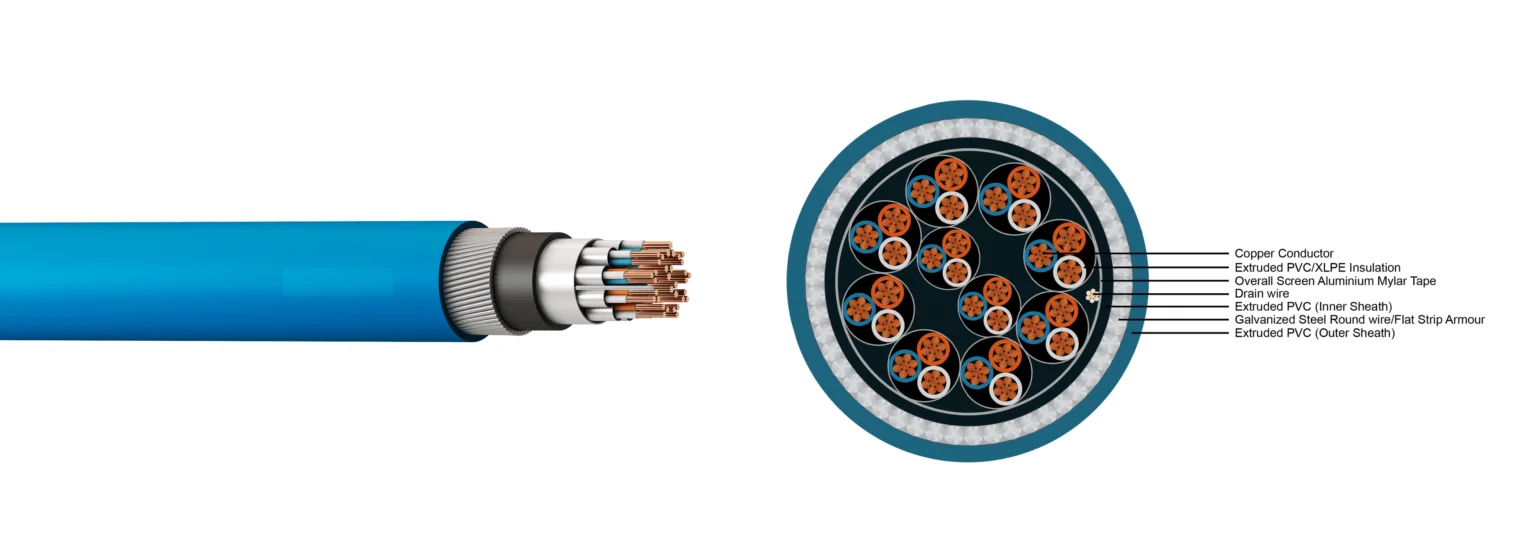

“Shera Cables” make Armoured/Unarmoured overall Screened/Unscreened traid cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, overall aluminium mylar tape Screened/Unscreened with ATC drain wire, PVC inner sheathed, galvanised steel round / flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm) |
VOLTAGE 300V / 500V / 1.1KV |
ARMORED YSWY / YSFY |
OUTER SHEATH PVC / LSZH |
TRIAD |
0.5 |
2T - 37T |
|||
0.75 |
2T - 37T |
|||
1 |
2T - 37T |
|||
1.5 |
2T - 37T |
|||
2.5 |
2T - 37T |

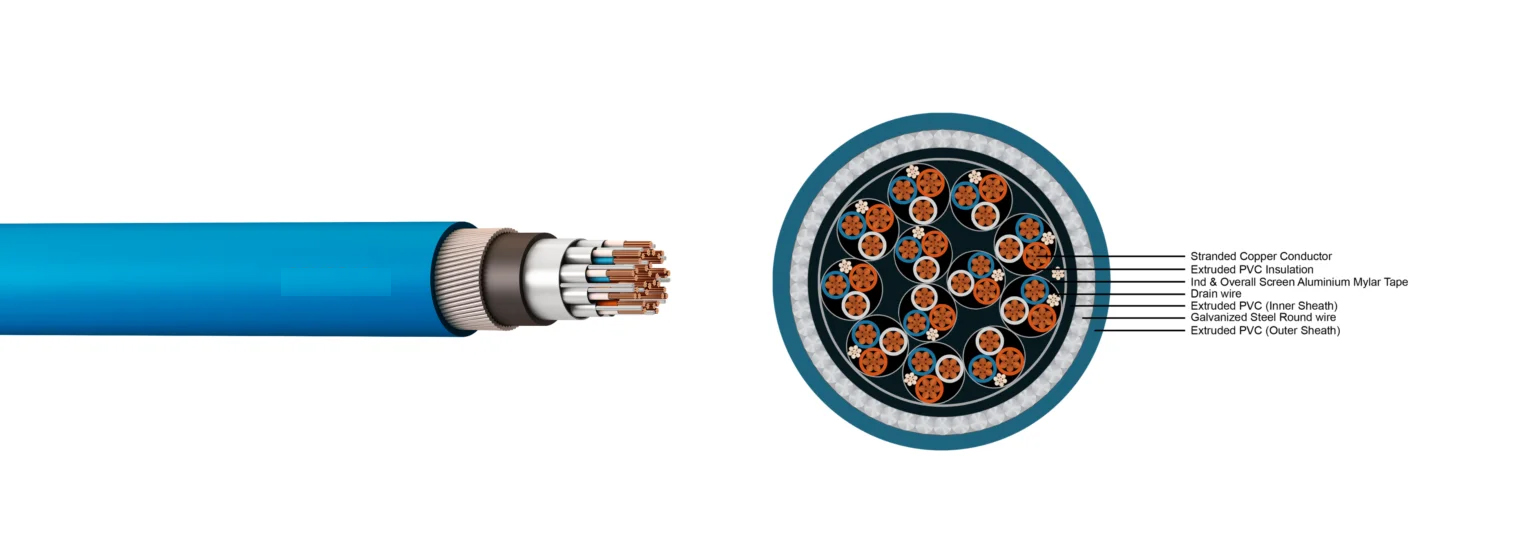

“Shera Cables” make Armoured/Unarmoured individual & overall Screened/Unscreened triad cable generally as per BSEN 50288-7 / BS:5308 / IS 1554 (Part-1) / IS 7098 (Part-1), copper conductor, PVC / XLPE insulated, triads laid up, individual & overall aluminium mylar tape Screened/Unscreened with ATC drain wires, PVC inner sheathed, galvanised steel round / flat galvanized armour, overall PVC sheathed.
SIZE (sq. mm) |
VOLTAGE 300V / 500V / 1.1KV |
ARMORED YSWY / YSFY |
OUTER SHEATH PVC / LSZH |
TRIAD |
0.5 |
2T - 37T |
|||
0.75 |
2T - 37T |
|||
1 |
2T - 37T |
|||
1.5 |
2T - 37T |
|||
2.5 |
2T - 37T |
