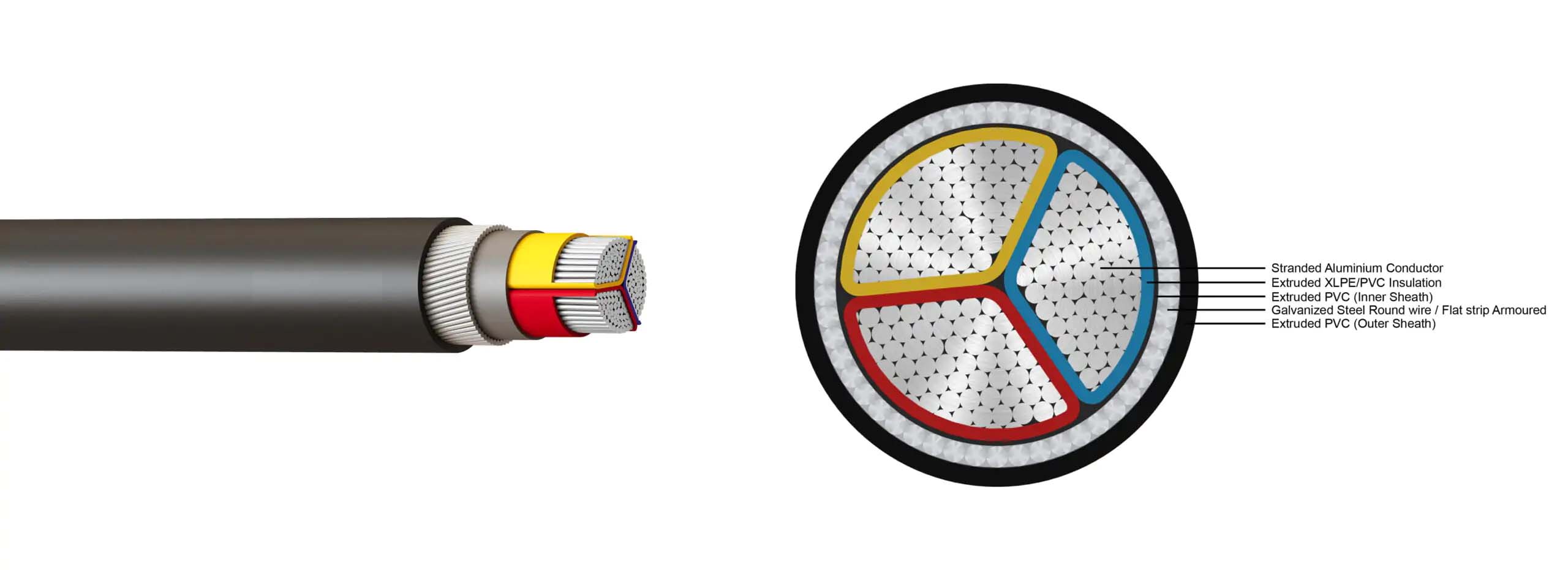

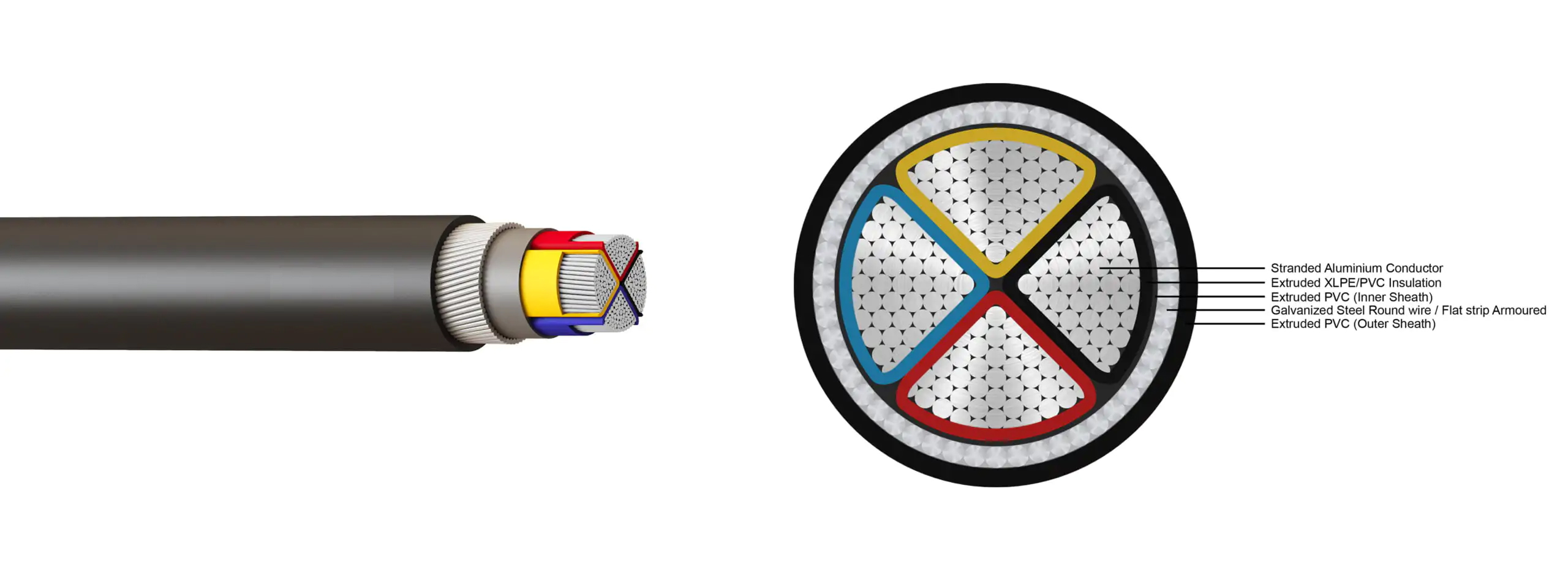

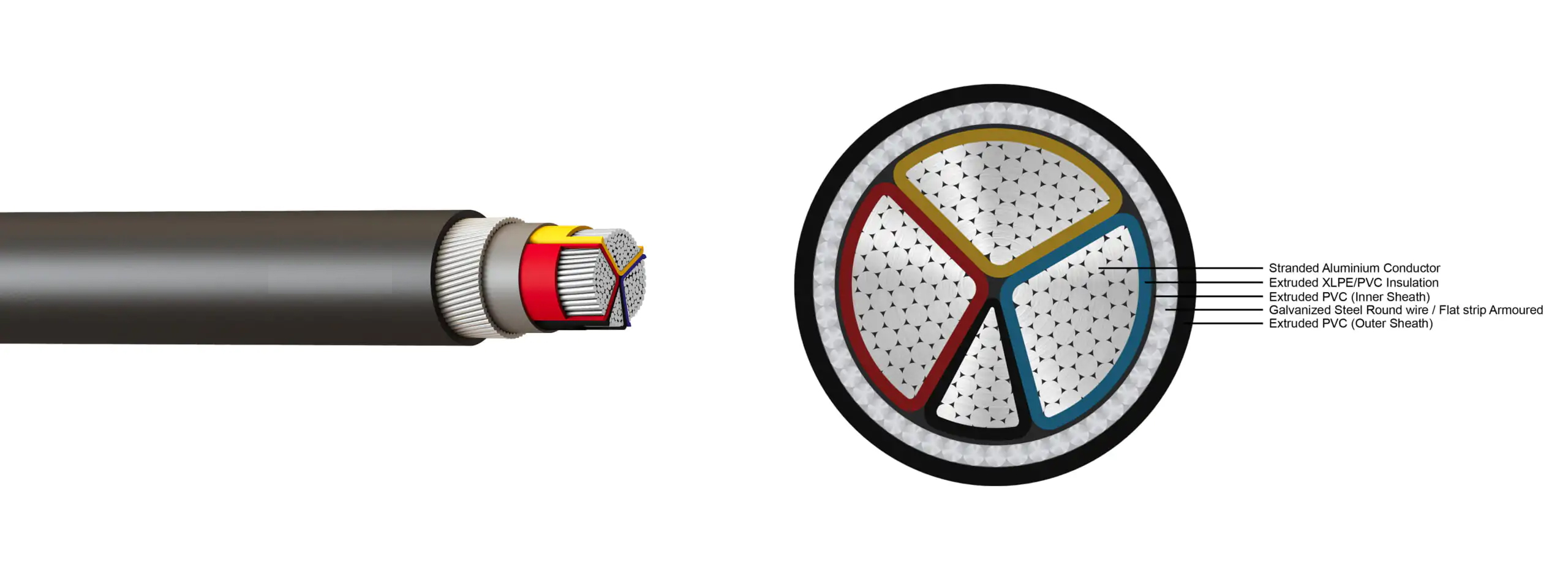

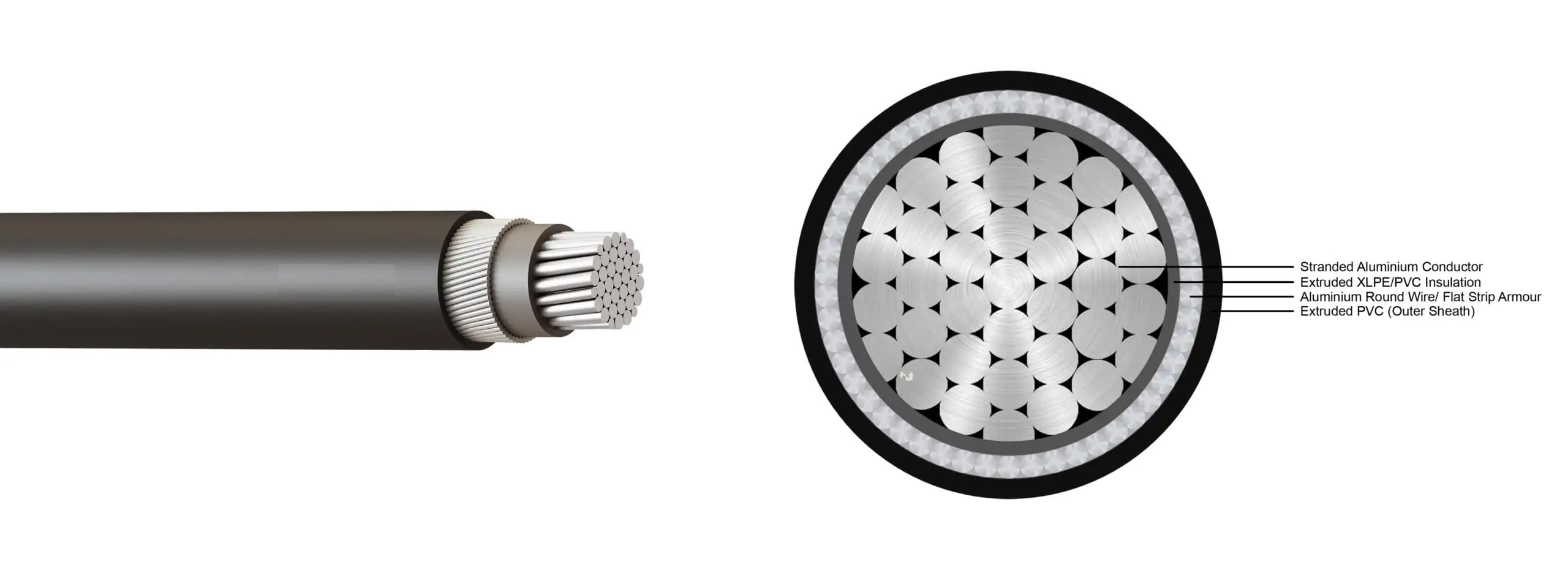

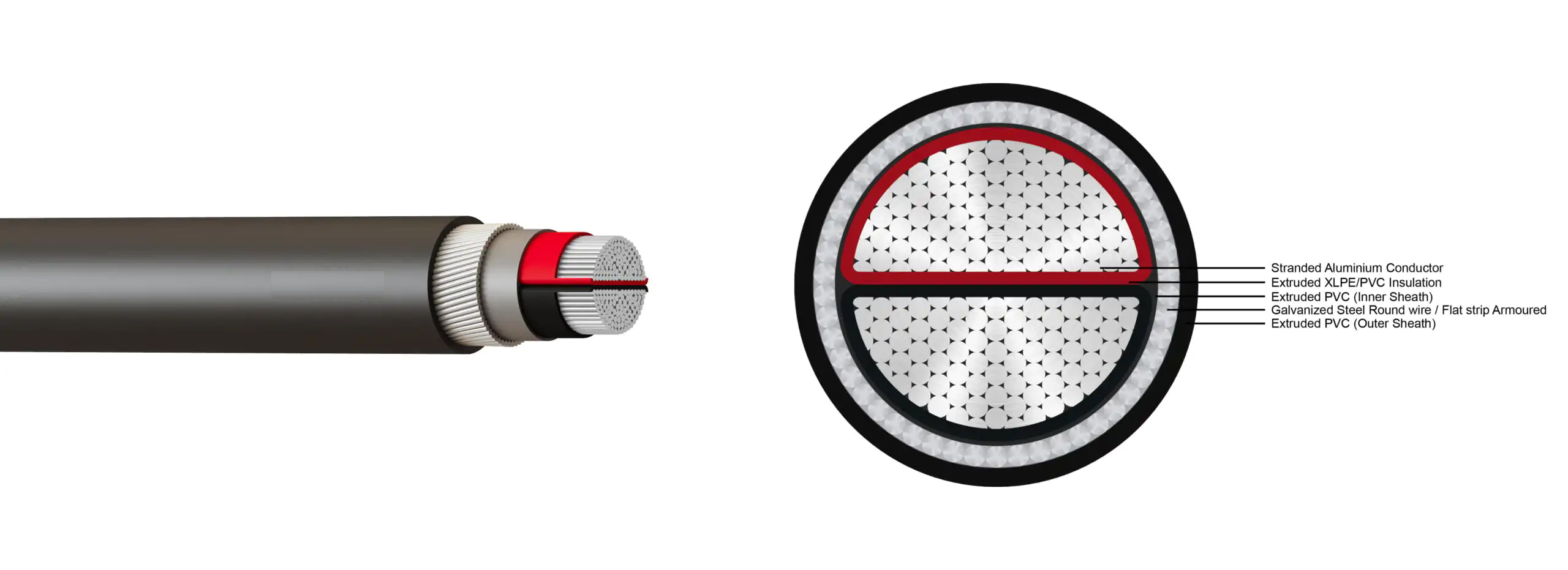

“Shera Cables” make 1100 V Armoured/Unarmoured power cable, conforming to IS: 1554(Part-1)/IS:7098 (Part-1), aluminium conductor, PVC/XLPE insulated, PVC inner sheathed, galvanized steel round wire/ flat strip armoured (For 1 core aluminium armour), overall PVC sheathed.
VOLTAGE |
ARMORING A2XFY, AYFY / A2XWY, AYWY |
INNER SHEATH PVC ST1, ST2/ FR/ FRLSH/ LSZH |
OUTER SHEATH PVC ST1, ST2/ FR/ FRLSH/ LSZH |
SIZE sq.mm |
1 CORE |
16 - 1000 |
|||
2 CORE |
6 - 630 |
|||
3 CORE |
6 - 630 |
|||
3.5 CORE |
25 - 630 |
|||
4 CORE |
6 - 630 |

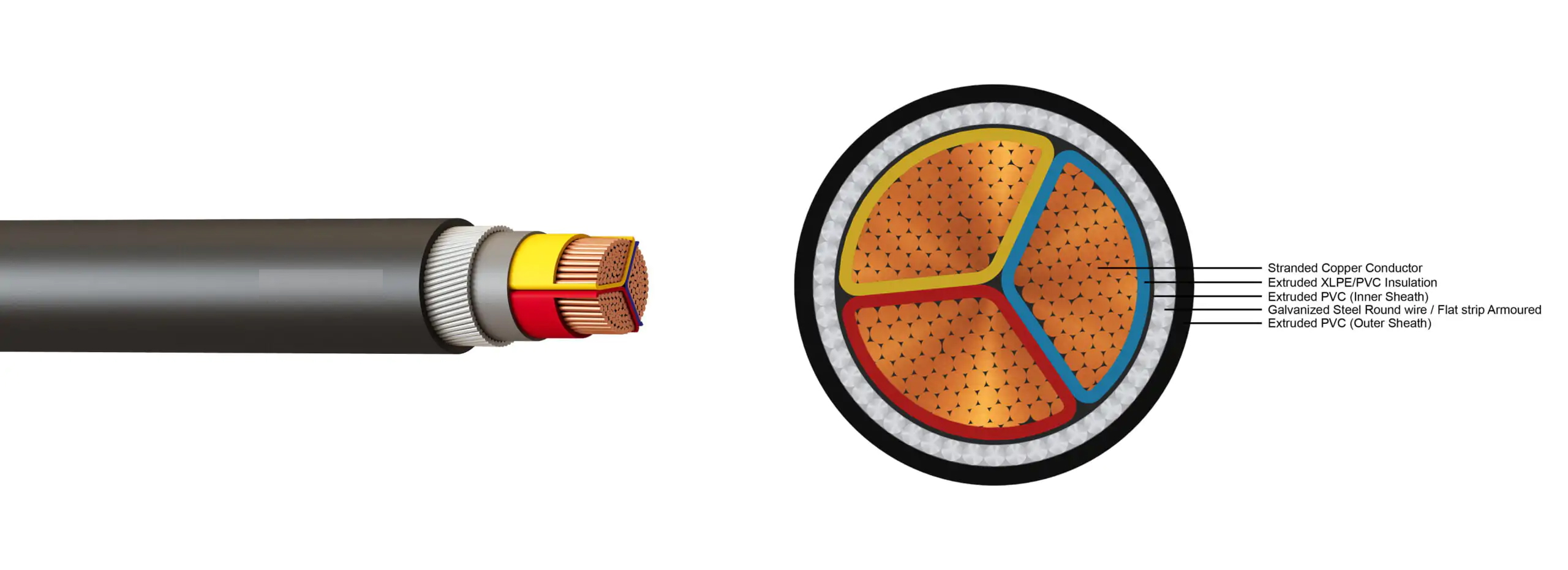

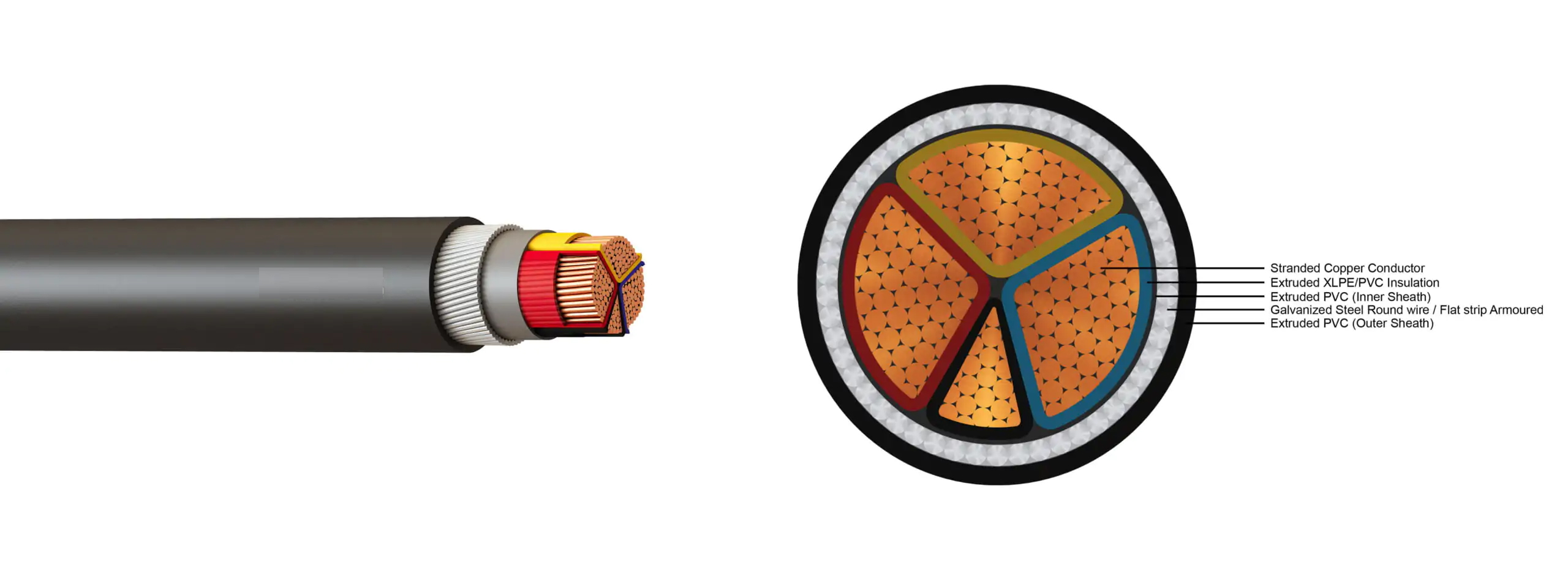

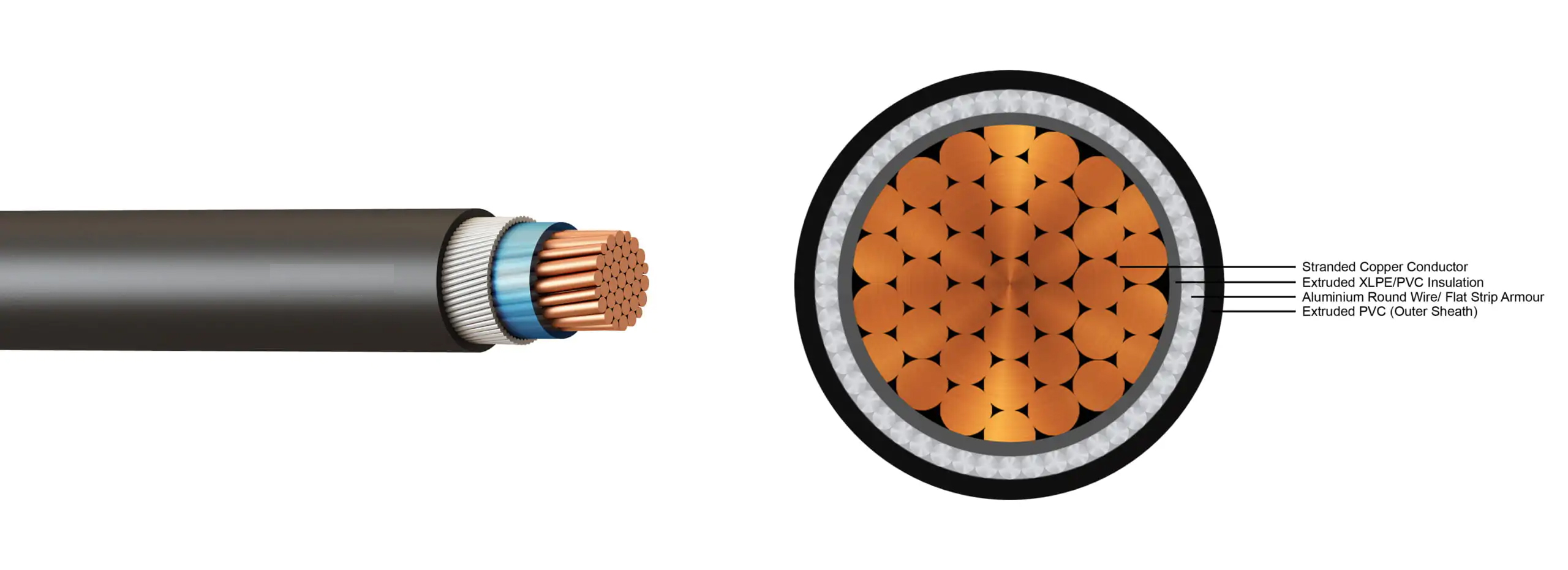

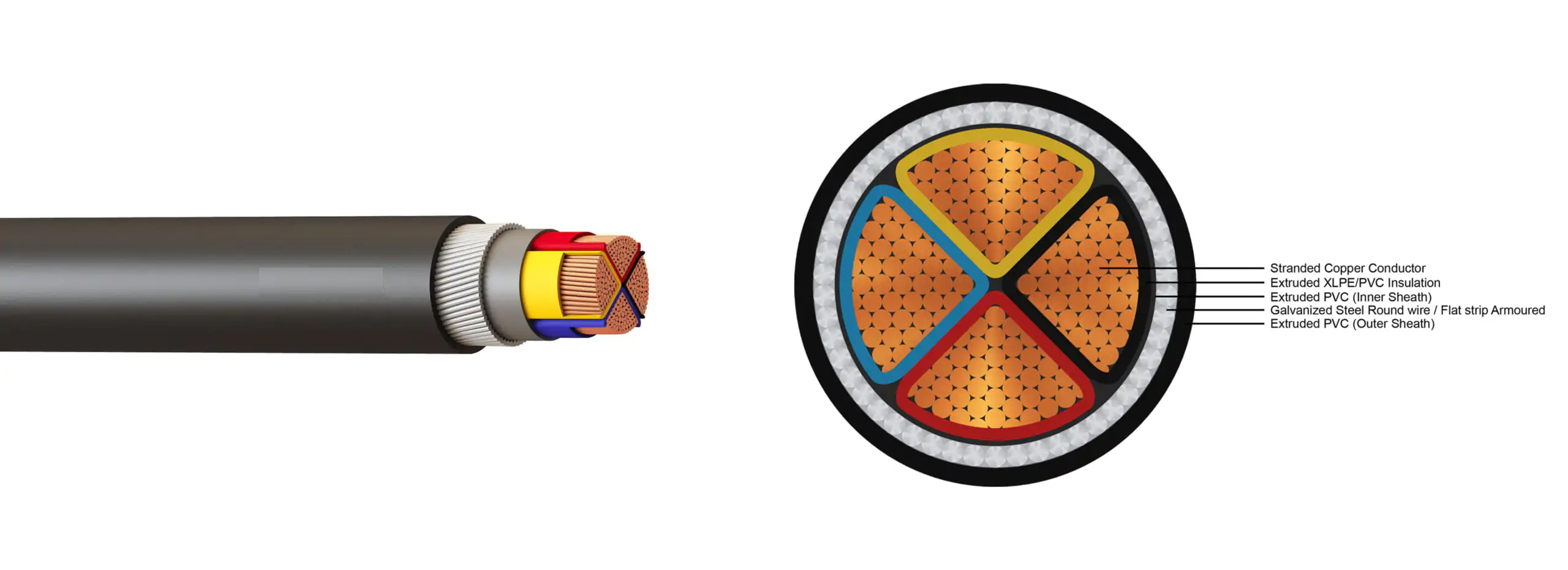

“Shera Cables” make 1100 V Armoured/Unarmoured power cable, conforming to IS: 1554(Part-1)/IS:7098 (Part-1), copper conductor, PVC/XLPE insulated, PVC inner sheathed, galvanized steel round wire/ flat strip armoured (For 1 Core aluminium armour), overall PVC sheathed.
VOLTAGE |
ARMORING A2XFY, AYFY / A2XWY, AYWY |
INNER SHEATH PVC ST1, ST2/ FR/ FRLSH/ LSZH |
OUTER SHEATH PVC ST1, ST2/ FR/ FRLSH/ LSZH |
SIZE sq.mm |
1 CORE |
16 - 800 |
|||
2 CORE |
4 - 400(*) |
|||
3 CORE |
4 - 400(*) |
|||
3.5 CORE |
25 - 400(*) |
|||
4 CORE |
4 - 400(*) |
|||
| * Above cables can be supplied up to 630 sq.mm on request | ||||
